F3 RE 10/22 CC RETRACTABLE TAIL-LIFT

LOAD CAPACITY *1700-2200kg

The 5 cylinder F3RE 17/22 CC are very strong lifts, with very high performance for intensive usage.

F3RE 17/22 CC with Chromed Guides, so premium quality, perfect alignment, low maintenance for demanding applications in the regular transport business, such as supermarket and food distribution.

Smooth hydraulic automatic tilt, high stiffness ideal to equip vehicles for customers that like high performances.

The 5 cylinders F3CL 17/22 are extremely versatile lifts suitable for commercial trucks above 7.5T GVW, rigids, trailers and semi-trailers.

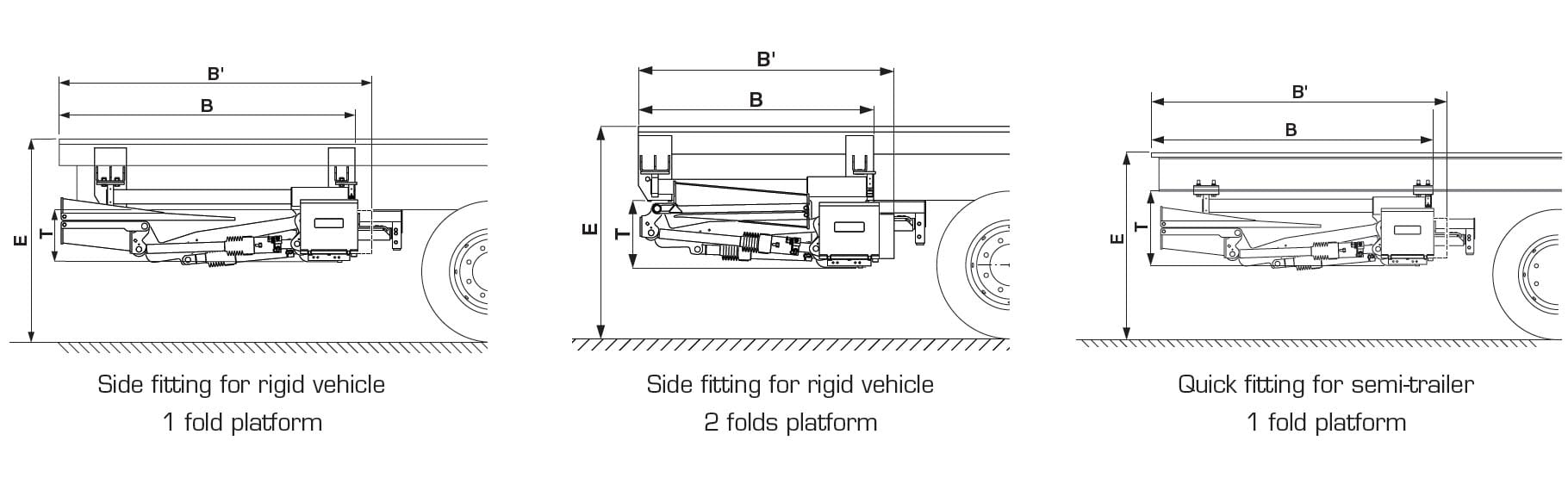

*For 1 fold platform: platforms depth available from 1333 mm to 1983 mm. **Approximate weight for tail-lift with platform width 2450 mm. Centre of gravity of the vehicle depending on the type of arm and the size of the installations on the vehicle (see assembly instructions). The above-mentioned weights are approximate and may vary according to production. Anteo reserves the right to change weights and technical specifications without prior notice. No indemnity for damages can be claimed from Anteo for changes in technical specifications and/or in weight.

Cylinders2 lift cylinders
+ 2 tilt cylinders
+ 1 automatic tilt cylinder
Sliding systemChromed guides, double
extension cylinder
Automatic tilt at ground levelYes, hydraulic
Platform materialAluminium
Tilt cylindersSingle Acting
Lift arm widths (W)780 -1230 - 1520 mm
Platform depths aluminium1 fold 1483 - 1683 - 1783 mm
(max 2033)
2 folds 1333 - 1633 - 1833 mm
Platform widths aluminium2100 - 2250 - 2400 mm
(Max 2500)
Standard control unit:Unit Exterior control box with joystick, turn button
