F3 CL30 CANTILEVER TAIL-LIFTS

LOAD CAPACITY *3000kg at 600mm 250kg at 1000mm

The 5 cylinder F3 CL30 is a very powerful lift for heavy duty tasks with very high performance and ideal for intensive usage.

The robust frame with reinforced strong articulation pins and big cylinders is designed for lift capacities of 2500 to 3000kg.

Platform Power opening that gives a high speed of platform opening even with very low temperatures, hydraulic automatic tilt for a smooth and safer operation, high stiffness ideal to equip vehicles for customers that like high performances.

The 5 cylinders F3 CL30 is suitable for rigids, trailers, and semi-trailers and when equipped with a longer platform (up to 2600 mm) can easily form the rear closure of the vehicle body.

*Approximate weight for tail-lift equipped with aluminium platform dimensions 1600 x 2500 mm. Centre of gravity of the vehicle depending on the type of arm and the size of the installations on the vehicle (see assembly instructions). The above-mentioned weights are approximate and may vary according to production. Anteo reserves the right to change weights and technical specifications without prior notice. No indemnity for damages can be claimed from Anteo for changes in technical specifications and/or in weight.

Cylinders2 lift cylinders
+ 2 tilt cylinders
+ 1 automatic tilt cylinder
Tilt cylindersDouble Acting
Platform openingPowered opening
Automatic tilt at ground levelYes, hydarulic
Platform materialAluminium or steel

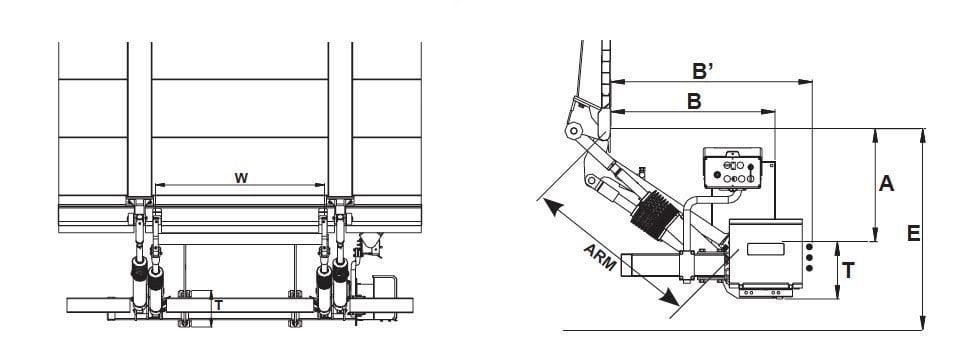

Lift arm widths (W)1250 mm
Platform depths aluminium1800 mm (max 2600)
Platform widths aluminium2450 mm (max 2600)
2520 mm (max 2600)
Standard control unit:Exterior control box with joystick, turn button
