F3 CL 10/17/22 CANTILEVER TAIL-LIFTS

LOAD CAPACITY *1000-1700-2200kg

The 5 cylinders F3CL 10/17/22 are very strong lifts, with very high performances for intensive usage.

It is ideal for the most demanding applications in the regular transport business, such as supermarket and food distribution.

Platform Power opening that gives a high speed of platform opening even with very low temperatures, smooth hydraulic automatic tilt, high stiffness ideal to equip vehicles for customers that like high performances.

The 5 cylinders F3CL 10/17/22 are extremely versatile lifts suitable for commercial trucks above 7.5T GVW, trailers, and semi-trailers.

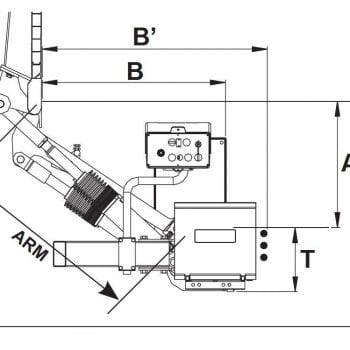

*Approximate weight for tail-lift equipped with aluminum platform dimensions 1600 x 2500 mm. Centre of gravity of the vehicle depending on the type of arm and the size of the installations on the vehicle (see assembly instructions). The above-mentioned weights are approximate and may vary according to production. Anteo reserves the right to change weights and technical specifications without prior notice. No indemnity for damages can be claimed from Anteo for changes in technical specifications and/or in weight.

Cylinders2 lift cylinder + 2 tilt cylinder + automatic tilt cylinder
Tilt cylindersDouble Acting
Platform openingPowered opening
Automatic tilt at ground levelYes, hydraulic
Platform materialAluminium or steel
Lift arm widths (W):1050 - 1230 - 1520 mm
Platform depths
Alu:
1600 - 1800 mm
(max. 2100 mm - F3CL 10HS)
(max. 2300 mm - F3CL 17HS)
(max. 2600 mm - F3CL 22HS)
Platform
widths Alu:
2350 - 2520 mm (max 2600)
Standard contorlUnit exterior control box with joystick, turn button
